How to Align Garage Door Sensors So They Actually Work

What Garage Door Safety Sensors Do and Why They Matter

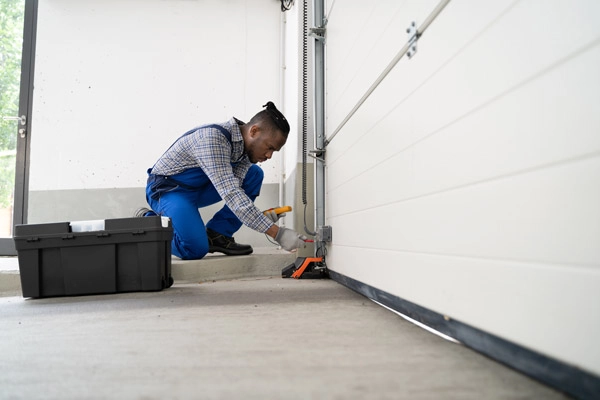

Every automatic opener sold in the United States since 1993 ships with a pair of photo-eye sensors, mounted a few inches off the floor on either side of the opening. Knowing how to align garage door sensors starts with understanding what those two small boxes do.

One unit is the emitter, firing an invisible infrared beam across the doorway to the receiver. Break that beam and the receiver tells the opener to stop and reverse. When the pair drifts out of line, the opener reads clear air as an obstruction and keeps the door open.

Signs Your Garage Door Sensors Are Out of Alignment

Misaligned safety sensors block closing but never block opening, so a garage door that stops when opening has a different cause entirely. Homeowners describe sensor trouble the same way every time: the door rolls up fine, then refuses to come down. Watch for these symptoms:

• The door starts down, then reverses with nothing in its path
• Indicator LEDs blink, dim, or go dark
• The dome light on the motor unit flashes, often ten times
• The wall button closes the door but the remote does nothing
• Operation works one day and fails the next

Sensor Light Colors and the Problems They Point Toward

Most brands use an amber LED on the sending unit and a green one on the receiver. Two solid lights mean the beam is landing where it should, and a blinking green light points to aiming rather than a dead part.

A dark amber light changes the diagnosis: that unit has no power, so check the wiring at the motor head first.

Telling a Failed Sensor Apart From a Misaligned One

Alignment problems respond to movement. Pivot the receiver slowly by hand and the LED should firm up somewhere in that arc. A light that never steadies signals a hardware failure instead.

Wiggle the wires at both ends while watching the indicators, since flickering points to a broken conductor. Parts also wear out, and garage door sensors can go bad after enough seasons of heat, cold, and moisture.

Tools You Need Before Adjusting Garage Door Sensors

Gather everything first. The job runs on basic hardware:

• Phillips screwdriver
• Cotton string longer than your door is wide
• Bubble level or a laser level
• Soft, dry, lint-free cloth
• Tape measure
• Class 0 insulated gloves

The Step-by-Step Method for Realigning Both Sensors

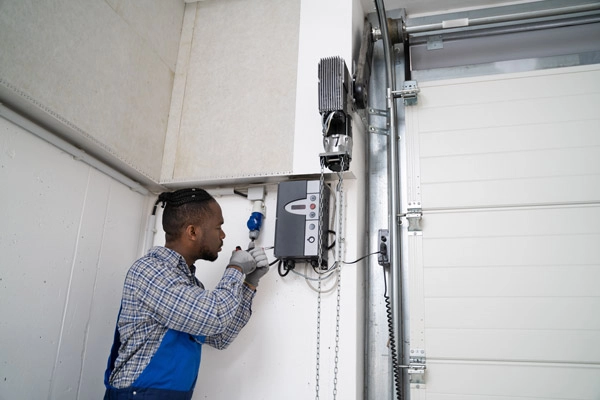

1. Turn Off Power to the Opener Before You Touch Anything

Trip the garage breaker, or pull the opener's plug from the ceiling outlet. You won't handle live conductors here, but cutting power stops the door from moving while your hands sit in its path.

2. Wipe the Sensor Lenses and Clear the Beam Path Completely

Dust, exhaust film, and cobwebs scatter the infrared light. Wipe both faces with a dry cloth, never a household spray, since this alone solves many no-close complaints. Then scan the floor between them for rakes, bins, and stray boxes.

3. Loosen the Mounting Bracket Screws on Both Sensor Units

Turn each screw counterclockwise until the bracket slides freely in your hand. Stop well before they come out, since the housing still needs to travel up and down.

4. Slide Both Sensors as Low as the Brackets Will Allow

Push each housing down with your fingers, never with pliers, because metal tools scar the plastic and crack the lens seat. Four to six inches above the floor is the zone manufacturers specify.

5. Run a String Across the Opening and Tie It Off Tightly

Knot one end around the first housing and its bracket, pulling the loop snug. Carry the free end across the doorway and tie it to the opposite unit at the same point on the case. A slack knot ruins the reading.

6. Check the String With a Level or a Laser Level Line

Hold your bubble level against the underside of the taut string and let it settle, sliding one bracket at a time until the bubble centers. A laser level works faster: park the beam on one lens and shift the far unit until the dot lands dead center.

7. Tighten the Brackets Without Crushing the Sensor Housing

Snug each screw until the unit resists a firm push. Over-torquing warps thin brackets and pulls your alignment back out. Recheck the level afterward, since tightening shifts things more often than expected.

8. Restore Power and Test the Door With a Block of Wood

Remove the string, flip the breaker back on, and confirm both LEDs glow steady. Set a scrap block in the beam path and press the remote. An aligned pair reverses the door within a second.

What to Do When the Sensors Keep Falling Out of Sync

Some doors pass the block test in the morning and fail by dinner. Intermittent faults point to conditions around the hardware rather than the parts themselves, and three culprits account for most repeat calls.

Direct Sunlight Glare on the Receiver and How to Block It

Low afternoon sun floods the receiver with infrared and drowns out the emitter's signal, so the door fails only during certain hours. Angle the housing a few degrees away from the glare or clip a small cardboard hood above the lens.

Water Damage Inside the Sensor Housing and Its Warning Signs

Melting snow and driveway runoff pool exactly where these units live. Look for fogging behind the lens, white crust on the terminals, or a stained case. Damp electronics send weak signals that no amount of aiming will fix.

Beam Calibration on Older Openers Without Indicator Lights

Early photo-eye systems shipped without indicator lights, so you lose the confirmation newer models give you. Level the pair with the string method, then judge by behavior: cycle the door three times, and a beam that holds through all three is calibrated correctly.

Wired and Wireless Sensor Setups Call for Different Checks

Both types aim an infrared beam across the opening, so the alignment tolerance is identical and a degree or two of tilt breaks either one. What changes is the list of things that fail around the beam.

Wired setups fail at the splice, so trace the low-voltage pair back to the motor head and look for staple punctures, rodent damage, and corroded connectors. Wireless models add batteries and pairing: swap the cells and re-sync to the opener before touching a bracket.

When to Stop Adjusting and Call a Garage Door Technician

Alignment is a reasonable Saturday project, but some findings belong to a trained tech. Make the call when you hit any of these:

• Both LEDs stay dark after cleaning, aiming, and restoring power
• Wires show chew marks, cuts, or green corrosion
• The pair drifts out of line every few weeks despite tight brackets
• The door binds, jerks, or sounds rough while traveling
• Your opener predates 1993 and lacks entrapment protection

Repeat drift usually traces back to bent track brackets or a door that no longer runs true. Tightening a screw won't touch structural problems like those.

Get a Free Quote From the Midwest's Home Exterior Team

Sometimes the sensors are the smallest problem on the wall. Feldco has served over 500,000 homeowners across Illinois, Wisconsin, Indiana, Iowa, and Michigan as the Midwest's #1 home exterior company since 1976. Browse our garage door options or request your free quote.

Garage Door Sensor Alignment Questions Homeowners Ask

How much voltage do garage door safety sensors use?

Residential photo-eyes run on low-voltage DC supplied by the opener, generally 12 to 24 volts depending on the brand. That wiring carries no household current, though the opener it feeds certainly does.

Can I bypass the sensors to close the door in an emergency?

Holding the wall button down closes the door under constant pressure, the manufacturer's built-in override for a stuck door. Use it only when you can see the whole path is clear, and never disable the sensors permanently. Federal rules require working entrapment protection on every residential opener.

How high off the floor should the sensors be mounted?

Manufacturers call for the beam no higher than six inches above the garage floor, with four to six inches as the standard range. Mounting them higher lets small children and pets slip underneath.

Why won't my garage door close when nothing is in the way?

An unbroken beam gives the opener permission to close, so a misaimed pair, a dirty lens, or a damaged wire all read as an obstruction. Check the indicator lights first, since a blinking LED narrows the search immediately.

How often should I check my sensor alignment?

Twice a year suits most Midwest homes, once after winter and once after summer. Temperature swings expand and contract the metal brackets, slowly walking the sensors off target.
