Window Anatomy: The Many Parts of a Window

When you gaze out your window, you might only notice the glass and frame – yet, in truth, there's a lot more happening. Understanding the anatomy of a window can help you make smarter decisions when it comes to window replacement, repairs, or home improvement.

Kitchen Window

If you want to read a window parts diagram, this guide can help. The important window parts you need to know will be explained. You can also learn about interior window trimming and compare different window styles.

Main Parts of a Window

A window consists of multiple structural elements that come together to provide light, ventilation, insulation, and aesthetic appeal. For a clearer look at how all these parts fit together, refer to the window components diagram below.

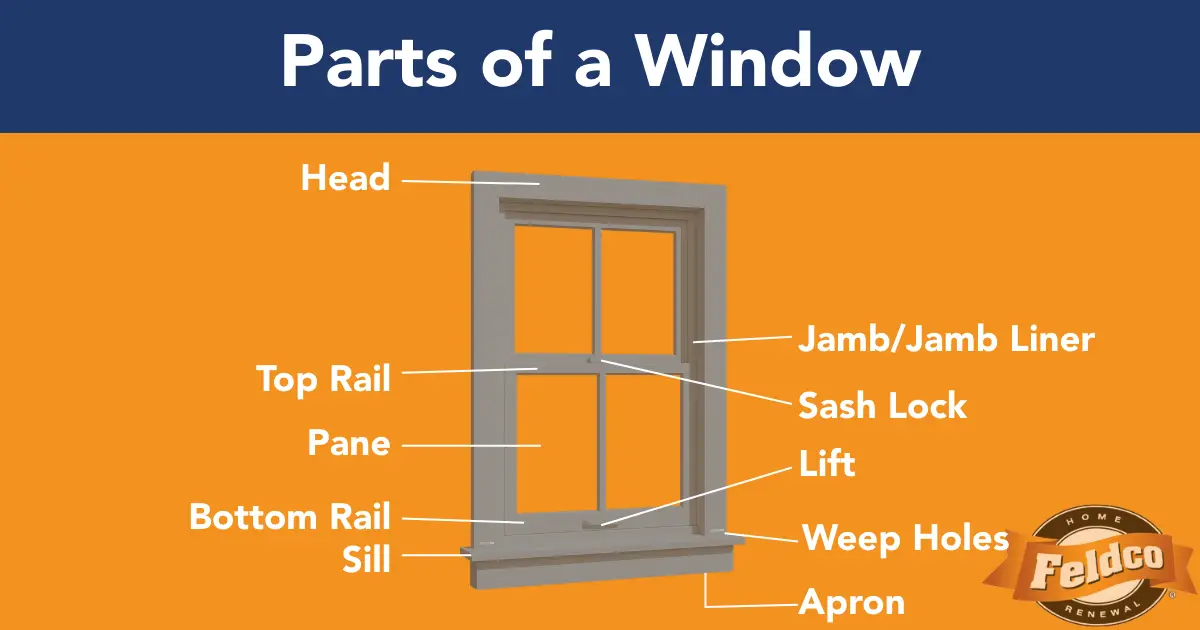

window components diagram

Image source: bayviewwindows.ca

Frame: Head, Jambs, Sill, Apron

These are the key parts of a window frame. Each part helps support and seal the window opening. The window frame is the outer structure that holds all other components together. It plays a vital role in both stability and insulation.

  • Head: The top horizontal section of the window frame.
  • Side jambs: The vertical sections on either side of the window frame.
  • Sill: The bottom horizontal part of the frame that supports the window. This is often referred to as the windowsill, especially on the interior.
  • Apron: A decorative horizontal board attached to the wall below the interior sill. It’s a visible part of interior window trimming and adds detail and polish.

Exterior versions of these components, especially when made from vinyl, are critical for outdoor weather resistance. Vinyl window trim exterior is low-maintenance and resistant to moisture, making it a popular choice.

Sash: Rails, Stiles, Tilt Latch

The sash is the part of the window that holds the glass and moves within the frame (in operable windows).

  • Rails: Horizontal sections of the sash (top and bottom).
  • Stiles: Vertical sides of the sash.
  • Tilt latch: Allows the sash to tilt inward for easy cleaning—especially common in double hung window parts.

Be they stationary or movable, sashes play an important role in both the functionality and aesthetics of windows. Contemporary designs often feature sashes with built-in seals to enhance insulation.

Glass: Double/Triple Pane, Spacer, Low-E Coating

Today’s windows are far more energy-efficient than older single-pane designs. Here's how:

  • Double and triple pane glass: These windows have two or three layers of glass. They are separated by gas-filled spaces. This design improves insulation and reduces noise.
  • Spacer: A crucial window component that separates the panes and helps maintain the structure of insulated glass units.
  • Argon or krypton gas: Fills the space between panes to reduce heat transfer.
  • Low-E coating: A microscopic layer that reflects infrared heat and reduces UV exposure.

Grilles and Muntins

These decorative bars divide the glass into sections or panes, adding a traditional or modern look depending on style.

  • Grilles: Removable or fixed, either between or on the surface of the glass.
  • Muntins: Historically structural, now often purely decorative – part of the trim and molding family of features.

Double-Hung Window: Unique Parts

Double-hung windows are one of the most common types of windows found in American homes. These windows include both upper and lower operable sashes that slide vertically.

Top and Bottom Sashes

Each sash operates independently, allowing ventilation from the top, bottom, or both.

Balance System

Located inside the side jambs, the balance system helps hold the sashes in place and allows them to slide smoothly.

Tilt Latch and Lock

  • Tilt latch: Permits the sash to tilt inward for cleaning.
  • Sash lock (also called strike or cam lock): Secures the window when closed.

Weep Holes and Weather Stripping

  • Weep holes: Small openings that let water drain from the window frame. They are important for vinyl or aluminum windows outside.
  • Weather stripping: Seals the gaps between the sash and frame to prevent air and water infiltration. This is a key element in energy-efficient replacement windows.

If you’re reviewing a window diagram, you’ll likely see all these double hung window parts labeled clearly.

Other Common Styles

Not all windows are built the same way. Each style has its own version of window components and moving parts.

Casement Windows

  • Crank handle: Used to open and close the window.
  • Operating arm: Extends the sash outward.
  • Locks: Usually multi-point for a secure seal.
Window Crank

Awning Windows

  • Operator arm: Opens the sash outward.
  • Head hinge: Located at the top of the frame.
Operating Arm Window

Sliding Windows

  • Track rails: Installed at the head and sill.
  • Sash pull handle: Built into the sash for ease of use.
  • Latch lock: Locks the sash when closed.

Hopper Windows

  • Bottom hinge: Allows the sash to tilt inward.
  • Side arms: Control the extent of the opening.

Hardware and Accessories

Most homeowners pay attention to the frame and glass. However, the hardware and trim are also important. They greatly affect how well windows work and how they look.

Locks and Handles

From simple latches to advanced cam locks, hardware secures your home and can complement your interior trim or design theme.

Weather Stripping and Screens

Weather stripping provides a crucial seal around the window to block air and moisture. Screens add functionality by allowing ventilation without letting bugs inside.

How To Measure Windows For Curtains

Curtains, Blinds, and Interior Trim

Don’t overlook the trim and molding elements:

  • Casing: Decorative trim around the interior window frame.
  • Curtains and blinds: Add privacy and UV protection.
  • Window stool and apron: Finish the look with horizontal vinyl or wood boards beneath the sill.

All these elements are part of window trimming inside your home. You can customize them with different materials. Choices include vinyl, composite, and natural wood.

Conclusion: Knowing Your Window Parts Helps You Choose Better

Knowing the parts of a window is important. Knowing the parts of a window helps you ask better questions. This knowledge also helps you choose the best products for your needs.

Every part of a window is important for its performance and design. This includes double hung window parts, vinyl window trim, the seal, and the lock. Each section affects long-term satisfaction.

Next time you look out your window, you won’t just see glass. You’ll see smart engineering, careful design, and many possibilities.
